Artikelomschrijving
Manage je Easy-UPS On-Line SRV

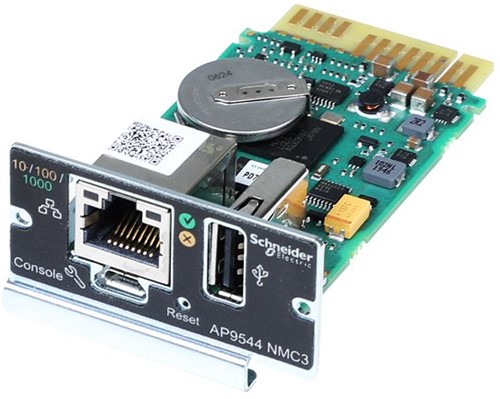

Met de Easy-UPS Netwerk On-line SRV Management Kaart (AP9544) verbind je je APC SRV ups direct met je netwerk. Zo is de APC SRV UPS eenvoudig op afstand te managen via de webbrowser toepassing, Ecostruxure IT expert[1] of SNMP[1] (third party software).
Graceful shutdown
Dmv de PowerChute Network Shutdown software[1] kan de ups via het netwerk een shutdown signaal sturen naar meerdere fysieke servers of storage sturen om zo een Graceful shutdown te initiëren en data loss te voorkomen.
Compatibiliteit
Deze netwerkkaart is geschikt voor de APC Easy-UPS On-Line SRV series
(Dus niet voor de SMV serie)
Flexibiliteit
De AP9544 biedt flexibiliteit op het gebied van functies, aangezien je ervoor kunt kiezen om alleen de out-of-box- functies te gebruiken of een optionele licentie te kopen voor toegang tot extra functies om aan meer geavanceerde zakelijke behoeften te voldoen.
Dit is wat u kunt verwachten:
Beveiliging
- Blijf beschermd tegen omgevings- en cyberdreigingen.
- Root of Trust - Veilig opstarten
- 2048 bit encryptiesleutel ondersteuning (SSH/web)
- EcoStruxure IT-services maken een veiligere infrastructuur mogelijk met cyberbeveiligingsbeoordelingen[1]
Gebruiksgemak
- Volledig geïntegreerde besturings- en bewakingssoftware die kant-en-klaar beschikbaar is met de flexibiliteit om alleen de beheerfuncties te kiezen die een bedrijf nodig heeft
- Webbrowserinterface voor volledige toegang tot en controle over alle beschikbare functies zonder dat extra software hoeft te worden geïnstalleerd
- Vooraf geladen ondersteuning voor meerdere talen (9 talen) met gelijktijdige aanmelding van meerdere gebruikers
- Flexibele beheerfuncties om aan te passen aan de werkelijke zakelijke behoeften[1]
Prestaties
- Bedien, bewaak en beheer alle belangrijke aspecten van de UPS
- Apparaten bewaken en beheren
- Herstart apparatuur op afstand[1]
- Sluit netjes netwerkapparaten af met PowerChute™[1]
- Volledige EcoStruxure™ IT-integratie[1]
[1]Vereiste licentie:
- FWENMC1P-ST1Y-DIGI netwerkbeheerkaart voor Easy UPS, 1-fase - 1 jaar standaardlicentie
of
- FWENMC1P-ST3Y-DIGI netwerkbeheerkaart voor Easy UPS, 1-fase - 3 jaar standaardlicentie
Ease of use
Web browser interface and CLI (Command Line Interface) preloaded on the card for full access and control of all available features. Connect the network management card wirelessly to support the reliability, performance and security requirements of IT infrastructures.
Web Browser Interface
Web browser interface for full access and control of all available features.
Preloaded multiple language support
No additional software required for monitoring.
(Enabled without License)
.
Wireless made easy
The APC USB Wi-Fi Device (AP9834) can be inserted into the USB port of the AP9544 network management card to enable wireless communication supporting the reliability, performance and security requirements of IT infrastructures. AP9834 is an optional purchase
(Enabled without License)
Remote UPS Management
Save time and money with the ability to reboot hung devices restoring functionality without deploying personnel.
Reboot Equipment Remotely
Quickly re-establish availability over your network and save dispatching technicians to remote locations.
(Enabled without License)
.
Gracefully shutdown with PowerChute Network Shutdown Software
Use PowerChute Network Shutdown Software to gracefully shut down the Operating system with advanced support for virtualized environments.
(Enabled with License)
.
Full EcoStruxure™ IT Integration
Monitor and manage your equipment more efficiently. Through the use of AP9544, leverage the vendor neutral architecture of EcoStruxure IT that delivers a new standard for proactive insights on critical assets of an IT environment.
(Enabled with License)
.
SNMP Management
Monitor and manage your UPS as one of your network devices over your preferred Enterprise Network Management System.
(Enabled with License)
Security
Advanced security features to keep sensitive data secure with newest compliance offerings.
Root of Trust - Secure boot
Secure Boot with Root of Trust for enhanced Security
(Enabled without License)
.
Increased password security
Increased password security with stricter credentials and force password policy configurations
(Enabled without License)
.
EAPoL architecture
EAPoL (Extensible Authentication Protocol over LAN) architecture used in IEEE 802.1x port-based network access control
(Enabled without License)
.
Secure access
Secure access SSH, HTTPS (TLS 1.2)
(Enabled without License)
.
Secure email authentication
Secure email authentication, file transfer (SCP)
(Enabled without License)
.
2048-bit encryption
2048 bit encryption key support (SSH/web)
(Enabled without License)
.
3 tier user access
3 tier user access (read only, device and administrator)
(Enabled without License)
Performance
A new LCES (Low Cost Ethernet Solution) processor provides a faster, more powerful experience.
Gigabit Ethernet
1 Gigabit Ethernet connection (RJ 45 10/100/1000 Base T)
(Enabled without License)
.
Simultaneous multiple user login
Supports multiple simultaneous log in sessions
(Enabled without License)
.
RADIUS protocol support
Allows for centralized user management for easier user sign on when remotely managing multiple or multi site UPS.
(Enabled with License)
Event- and Data Logging Storage
Extended memory space available to accommodate increased event and data log storage
Data Logging
Identify problematic trends before they escalate or export logs for analysis
(Partially enabled without License, Fully enabled with License)
.
Event Logging
Pinpoint timing and sequence of events leading up to an incident with event log
(Partially enabled without License, Fully enabled with License)
.
Notification
Be notified of problems ensuring crucial situations are dealt with in a timely manner
(Partially enabled without License, Fully enabled with License)
.
Scheduling
Customize shutdown and reboot of connected equipment and UPS
(Partially enabled without License, Fully enabled with License)
.
